IP67 M12 M8 3 4 5 6 12 17 PIN Panel mount soldering type PCB waterproof Male to Female connector

Name: IP67 M12 M8 3 4 5 6 12 17 PIN Panel mount soldering type PCB waterproof Male to Female connector
Brand: RItian
Price: 1 USD

China IP67 M12 M8 3 4 5 6 12 17 PIN Panel mount soldering type PCB waterproof Male to Female connector factory

Brand Name : RItian

Model Number : M12 circular connector

Certification : CE RoHs SASO IEC

Place of Origin : China

MOQ : 100 Unit

Price : Negotiable

Payment Terms : T/T

Supply Ability : 5000 units per month

Delivery Time : 15 days

Packaging Details : Packing of 100 unit per carton

Model : M12 connector

Type : Panel mount, circular

Body material : Brass , Nickel plated

Gender : Male Female

mounting type : Front Mount / Back Mount / 4 Hole Flange

material of contact : Phosphor bronze , Gold plated

protection class : IP67

application : PCB , automotive/automation/industry/LED etc

Rated current : 4A for 3/4/5/6 pin, 2A for 8pin, 1.5A for 12/17pin

Contact Now

IP67 M12 M8 3 4 5 6 12 17 PIN Panel mount soldering type PCB waterproof Male to Female connector

Applications:

● Sensors, actuators, encoders, motors, industrial cameras, ships and other equipment
● Factory automation process control
●Packaging label printing equipment
● Industrial equipment
● EMS circuit board assembly
● Industrial safety grating light curtain
●Equipment batteries, semiconductors
● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet,
● Ship electronics NMEA 2000, rail transit
● LED outdoor display, outdoor LED lighting

M/F AISG Ground pin PCB connector specifications:

Model	M12 Circular connector
standard	IEC 60130-9
Protection class	IP67 Epoxy Potting
connection mode:	threaded connection
contacts:	fully gold plated(0.2μm Min.)
Contact material:	Shell Nickel Plating / Ternary Alloy
PIN:	3. 4 5 6 7 8 9 13 17 pins

Electrical parameters:
rated current:	5A
rated Voltage:	250V
contact resistance:	5mΩ(Max.)
insulation resistance:	1010Ω(Min.)
Pressure resistance:	1200Vrms.1min.(60Hz)

IP67 M12 M8 3 4 5 6 12 17 PIN Panel mount soldering type PCB waterproof Male to Female connector

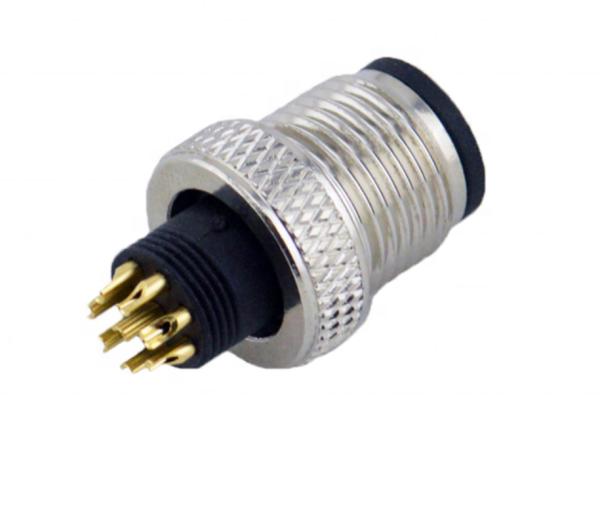

IP67 M12 M8 3 4 5 6 12 17 PIN Panel mount soldering type PCB waterproof Male to Female connector Images
